Miscellaneous Projects

Chris-Hill has the employees and equipment to perform most any civil construction project. Here are a few of our more interesting miscellaneous projects performed over the past few years.

press to zoom
Injecting Bags with Grout
Injecting Bags with Grout

press to zoom

press to zoom
1/2

White River Dam #2 Repairs

Grout was pumped into bags to create grout columns to reinforce an old set of stairs on a leaky dam.

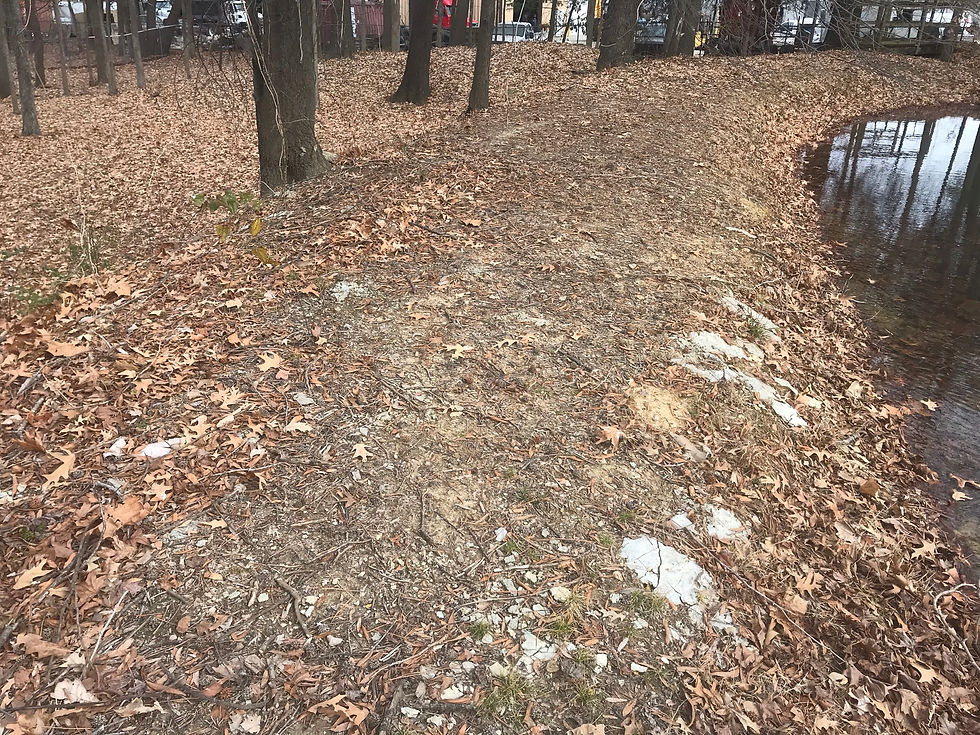

Hardened Grout on Pond Dam
Hardened Grout on Pond Dam

press to zoom
Hardened Grout on Pond Dam
Hardened Grout on Pond Dam

press to zoom
1/1

Earthen Dam Repair with Grout Injection

A grout injection method was used to fill voids in a dam surrounding a pond at Chris-Hill's main office. Water continually leaked through the dam before the voids were plugged with grout.

Drilling Pilot Holes to Find Voids
Drilling Pilot Holes to Find Voids

press to zoom
Drilling Through Pavement
Drilling Through Pavement

press to zoom

press to zoom
Drilling Pilot Holes to Find Voids
Drilling Pilot Holes to Find Voids

press to zoom
1/3

Cargill Roadway Grout Injection

A Beretta drill rig was used to drill through existing pavement and fill a sinkhole with grout that had been discovered under a roadway at Cargill's Memphis plant.

Load Test Jack
Load Test Jack

press to zoom
Load Test Gauges
Load Test Gauges

press to zoom
Load Test Jack
Load Test Jack

press to zoom
1/2

Ductile Iron Pile Tension Load Test

Chris-Hill installed and performed a static tensile capacity load test to 50 kips on a production ductile iron pile for a project in Dickson, TN.

Jacking of Façade
Jacking of Façade

press to zoom
Bracket Connection to Footing
Bracket Connection to Footing

press to zoom
Façade Settling Before Lifting
Façade Settling Before Lifting

press to zoom
Jacking of Façade
Jacking of Façade

press to zoom
1/3

Little Rock Air Force Base Foundation Lifting

Chris-Hill lifted three façades that were settling away from a building at the Little Rock Airforce Base. Helical piers with a lifting bracket connected to the footings and hydraulic jacks were used to raise the building entrances.

Bridge After Jacking
Bridge After Jacking

press to zoom
Bridge Jacking in Progress
Bridge Jacking in Progress

press to zoom

press to zoom
Bridge After Jacking
Bridge After Jacking

press to zoom
1/3

Poplar Avenue Bridge Jacking

Chris-Hill raised an existing bridge on Poplar Ave in Memphis, TN to create more headroom under the bridge for traffic on Interstate 240.
